F-1 Engine LOX Dome

The F-1 rocket engine's LOX dome (aka "oxidizer dome") routes high-pressure liquid oxygen (LOX) from the turbopump to the injector, where it is mixed with fuel and subsequently burned.

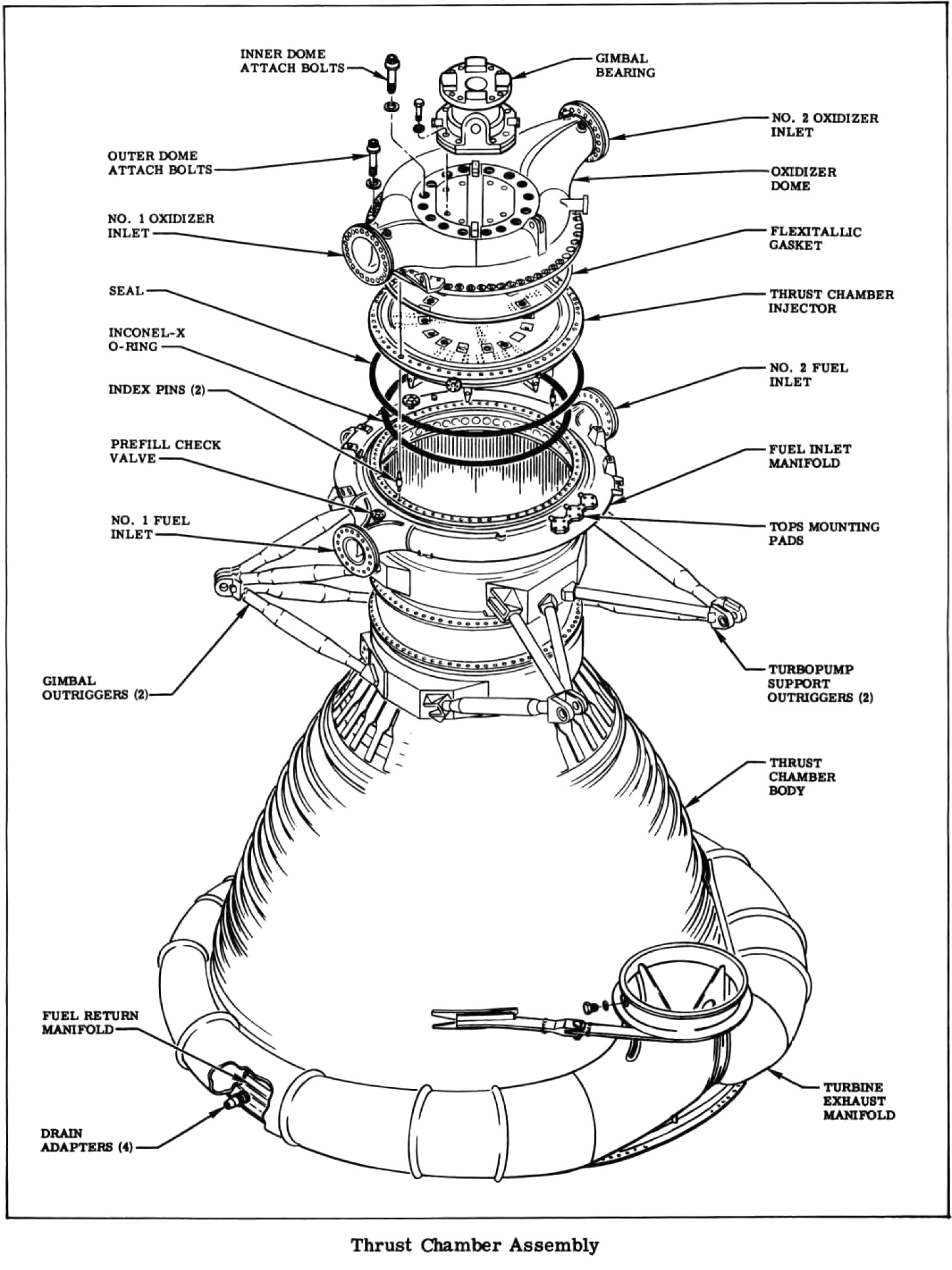

The LOX dome is located at the forward end of the engine, between the gimbal bearing and the injector:

F-1 engine thrust chamber assembly

Click image for a 1562x2084 pixel version of this image in a new window.
From p. 1-7 (p. 22 in the PDF) of F-1 Engine Familiarization Training Manual (R-3896-1) [direct link to 16.8M PDF file at UAH's USSRC Archive]
Extraction and cleanup by heroicrelics.org.

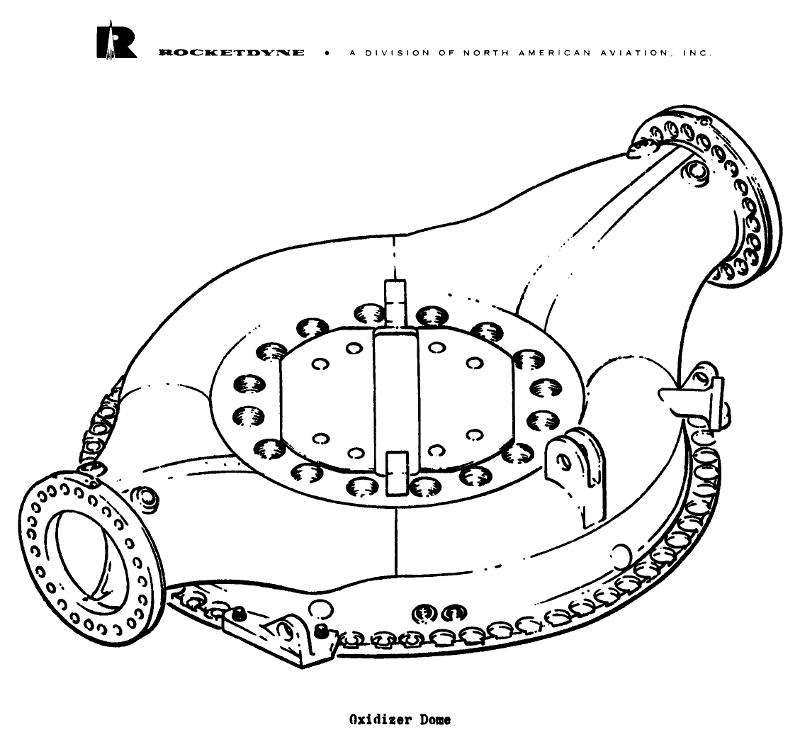

A more detailed diagram of the LOX dome itself:

F-1 rocket engine lox dome oxidizer dome

Click image for a 2259x2094 pixel version of this image in a new window.
From p. 134 (p. 145 in the PDF) of Project First, F-1 Combustion Stability Program, Volume 2, Book 3. Extraction and cleanup by heroicrelics.org.

And a photo of the LOX dome installed in F-1 engine F-114-2 at Stafford Air & Space:

F-1 engine F-114-2 Stafford Air Space Museum lox dome oxidizer dome

Click image for more information about this picture; opens in a new window.
Picture by heroicrelics.org.

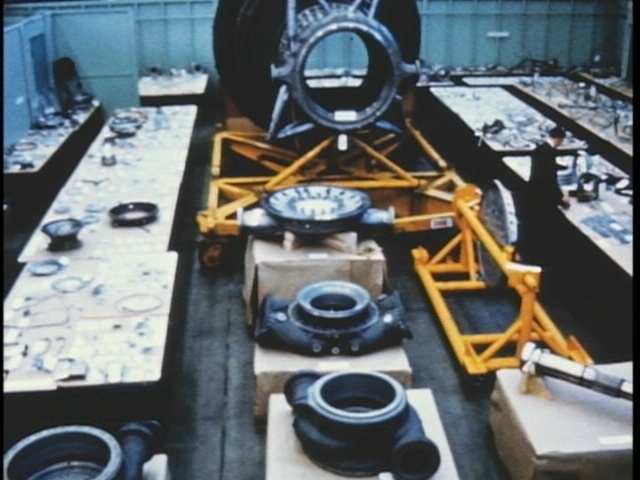

The only vintage picture or diagram I've been able to find of the aft-facing end of the LOX dome appears below (LOX dome located in center of the photo, in front of the thrust chamber's yellow dolly).

F-1 engine tear down lox dome oxidizer dome injector turbopump

Taken from Saturn V Quarterly Report No. 16.
Video capture by heroicrelics.org.

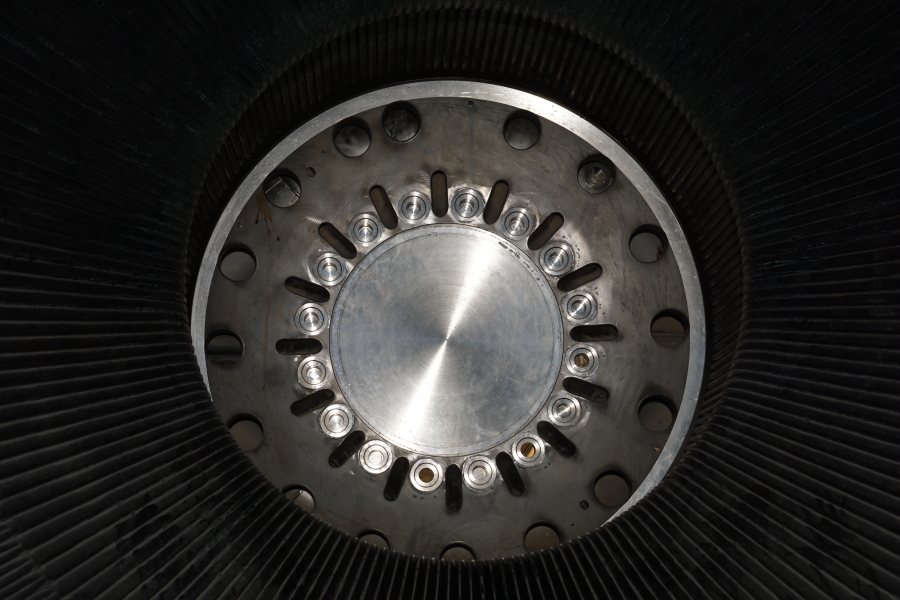

F-107-1 at Science Museum Oklahoma (formerly the Omniplex) is displayed without its injector, so the aft-facing side of the LOX dome is visible:

F-1 engine F-107-1 Omniplex Science Museum Oklahoma lox dome oxidizer dome

Click image for more information about this picture; opens in a new window.
Picture by heroicrelics.org.

Note the arrangement of larger holes around the periphery of the LOX dome face; compare with the holes in the video capture above; note how the two holes at about the 11:00 position are closer together. Also note the 16 smaller-diameter holes closer to the center of dome face (alternating with the slots). These appear to correspond with the 16 inner dome attach bolts, in both the diagram above and the photo of forward end of the LOX dome above.


Thanks to Vince Wheelock for providing invaluable research and insight into the F-107-1 LOX dome issue.
