F-1 Rocket Engine Technical Manual Supplement (R-3896-1A)

While perusing the Morea Collection at the archives of the University of Alabama at Huntsville I happened upon a short Rocketdyne publication containing details about the injector from the F-1 engine's gas generator, the F-1's injector proper, and the F-1's turbopump.

Originally a classified supplement to the F-1 Rocket Engine Technical Manual: Engine Data (R-3896-1) (presumably because information about the injector and the way it was designed to overcome combustion instability was sensitive at the time), it has long since been downgraded to "declassified".

Proceed to download links.

Here are some highlights from the manual:

F-1 Rocket Engine Technical Manual Engine Data Supplement R-3896-1A

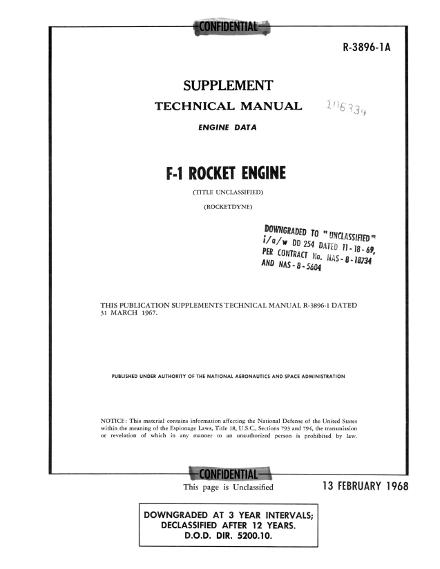

	 cover F-1 Rocket Engine Technical Manual Engine Data Supplement

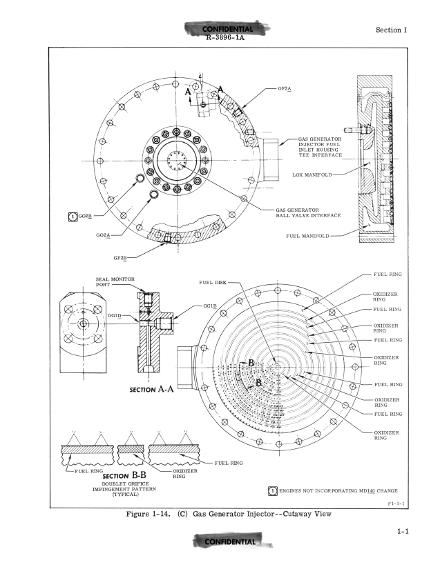

	     R-3896-1A gas generator injector

F-1 Rocket Engine Technical Manual Engine Data Supplement R-3896-1A

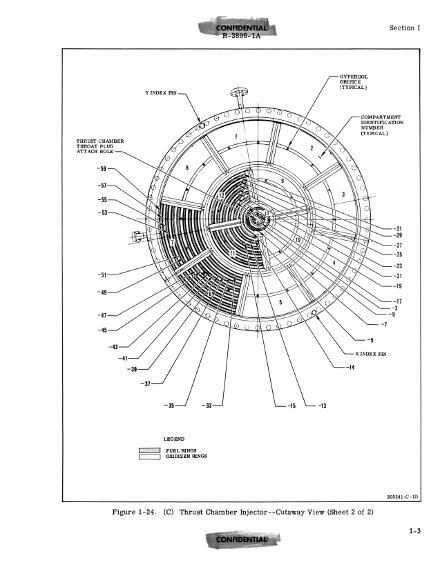

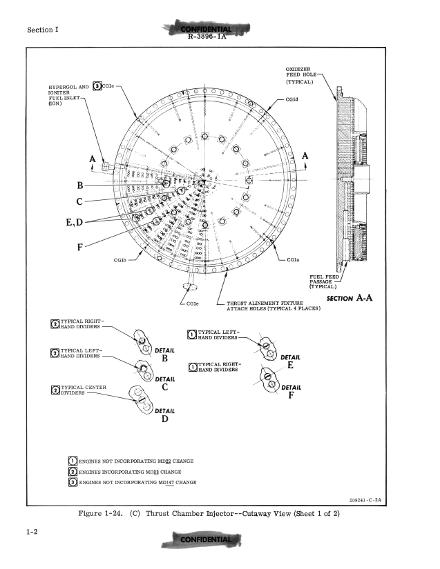

	 injector plate injector plate cut-away F-1 Rocket Engine Technical Manual Engine Data Supplement
	     R-3896-1A injector plate

F-1 Rocket Engine Technical Manual Engine Data Supplement R-3896-1A

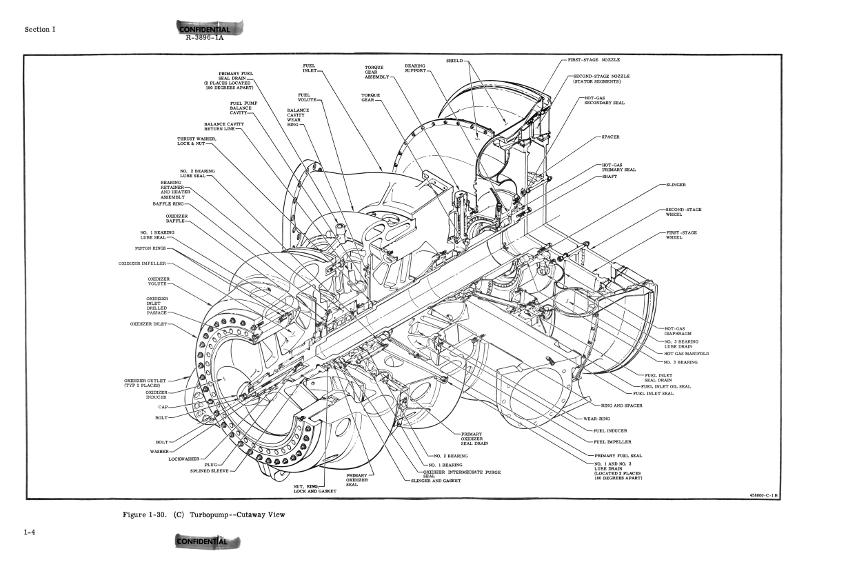

	 turbopump turbine cut-away

Download Links

I've prepared three PDFs:
