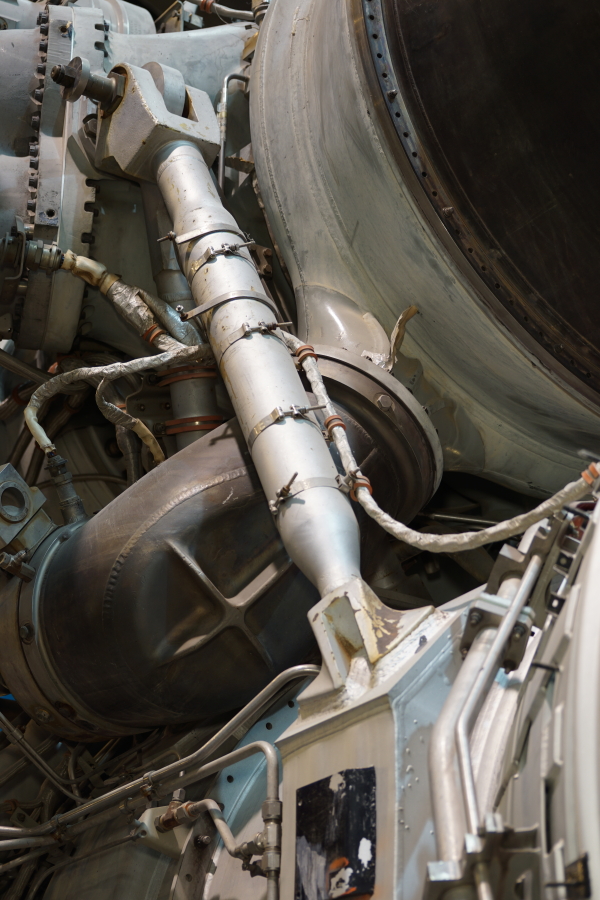

View of gas generator mated to the turbine manifold assembly on the No. 1 side of the engine.

Also note the diagonal turbopump support outrigger. The fitting on the left side of the forward end of the outrigger is where the F-1 engine rotating sling assembly (G4050) would attach, allowing personnel to rotate the engine from a horizontal to vertical orientation, or vice versa.
