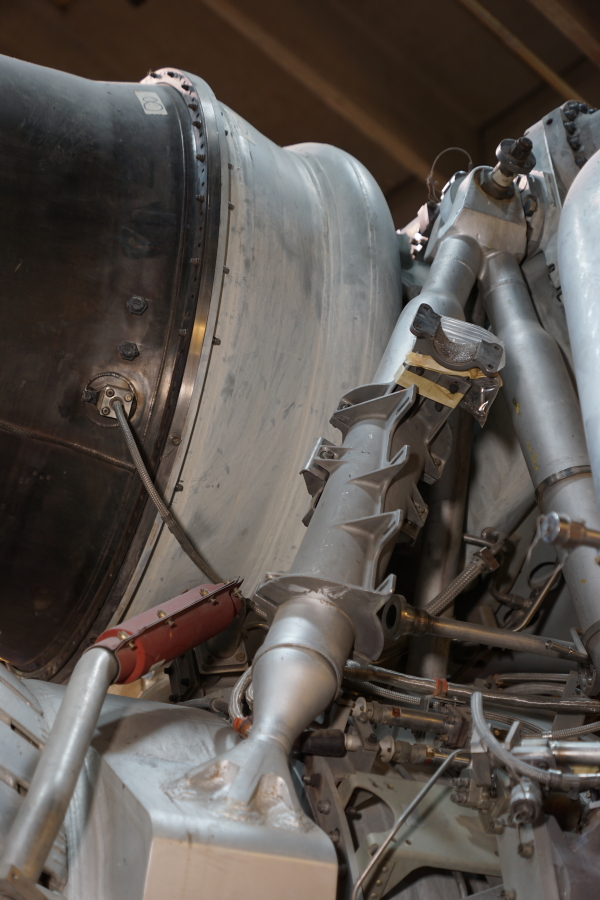

View of the turbopump's turbine manifold assembly, the silver ring forward of the brown heat exchanger.

Picture 2 of 2.

This photo was taken from the No. 2 side of the engine.

Also note the turbopump support outrigger; one arm runs diagonally from lower left and the other nearly vertical at right. The fitting on the right side of the forward end of the outrigger ares is where the F-1 engine rotating sling assembly (G4050) would attach, allowing personnel to rotate the engine from a horizontal to vertical orientation, or vice versa.


Turbine manifold assembly on F-1 Engine at Science Museum Oklahoma
Time picture taken Wed Apr 13 15:04:20 2016
Location picture taken Open-Air Exhibit Gallery
Science Museum Oklahoma (formerly the Omniplex)
Oklahoma City, OK
