Pictures of the nozzle extension handling fixture. Once I got the camera high enough to go over the top of the extension, I could no longer see through the viewfinder, so these were "shooting blind."

Picture 1 of 4.

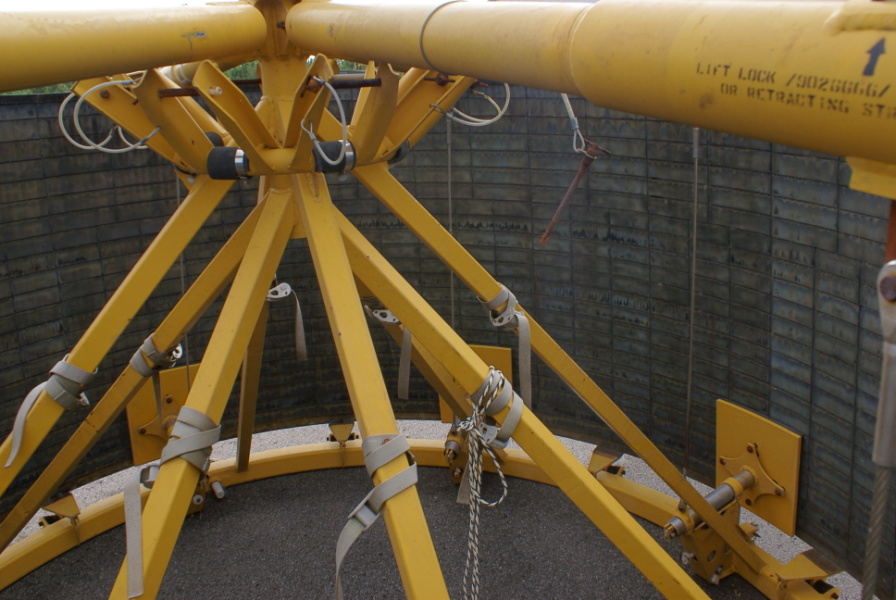

Note the yellow pads near the bottom of the nozzle extension; they correspond to the black pads of the nozzle extension handling fixture.


Time picture taken Fri Oct 24 15:59:36 2008
Location picture taken Building 4205
Marshall Space Flight Center
Huntsville, AL
