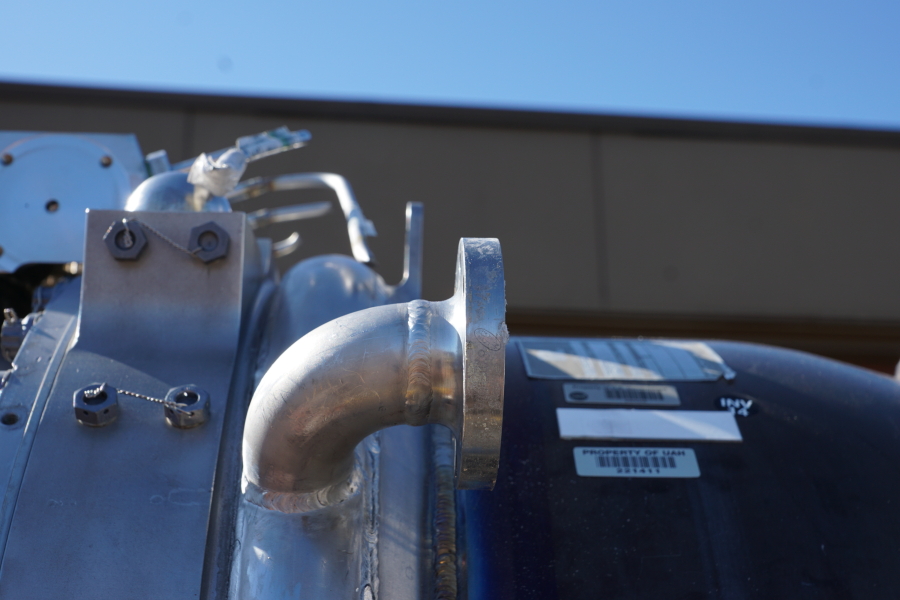

An elbow fitting on the forward end of the thrust chamber, on the LOX dome and injector assembly. This elbow taps off gaseous hydrogen to recharge the engine's start tank.

Note the various ID plates and tags on the combustion chamber.


J-2 Thrust Chamber at University of Alabama at Huntsville
Time picture taken Wed Nov 6 14:12:18 2019
Location picture taken Johnson Research Center
University of Alabama at Huntsville
Huntsville, AL
