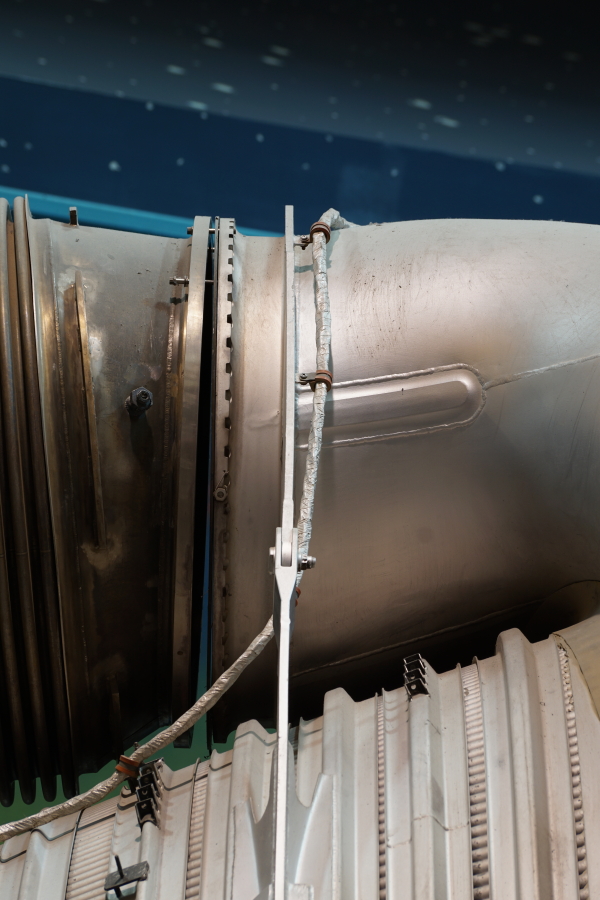

Interface between the heat exchanger and the turbine exhaust manifold inlet.

Picture 2 of 2.

This is one of several examples where it appears that the engine had been disassembled or had components removed, but only somewhat reassembled.

Note the wire bundle leading to the nozzle extension igniters.
