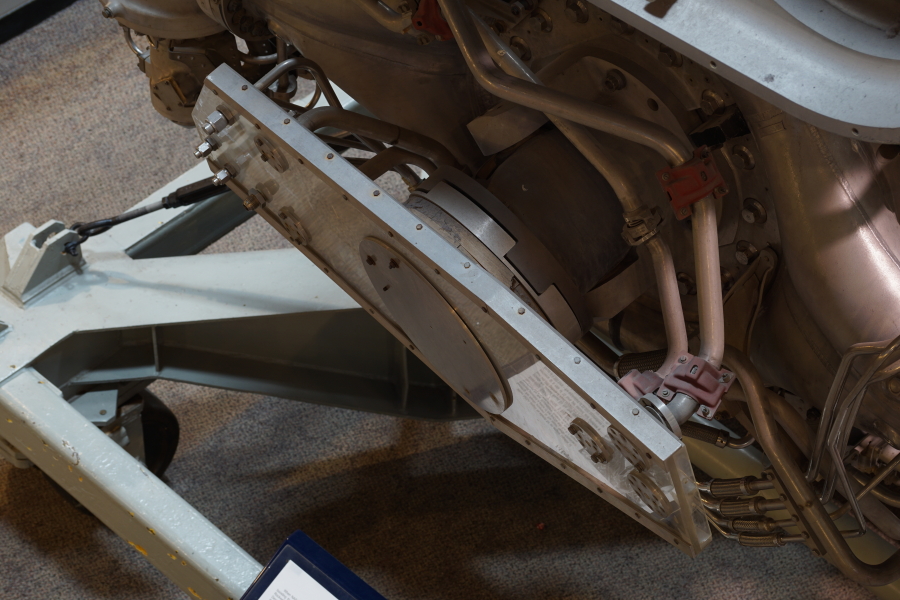

Overall view of the LOX dome area of the engine.

Picture 1 of 3.

This engine is the most complete one I've ever seen, with many of the tubes and lines wrapping around the LOX dome and gimbal block. I've seen the Plexiglas connection carrier panel in vintage photos and models, but this is the only engine I've seen with one.

While the Plexiglas connection carrier panel blocks the view of the gimbal bearing when viewed from the front, the gimbal bearing is (barely) visible in this elevated view.
