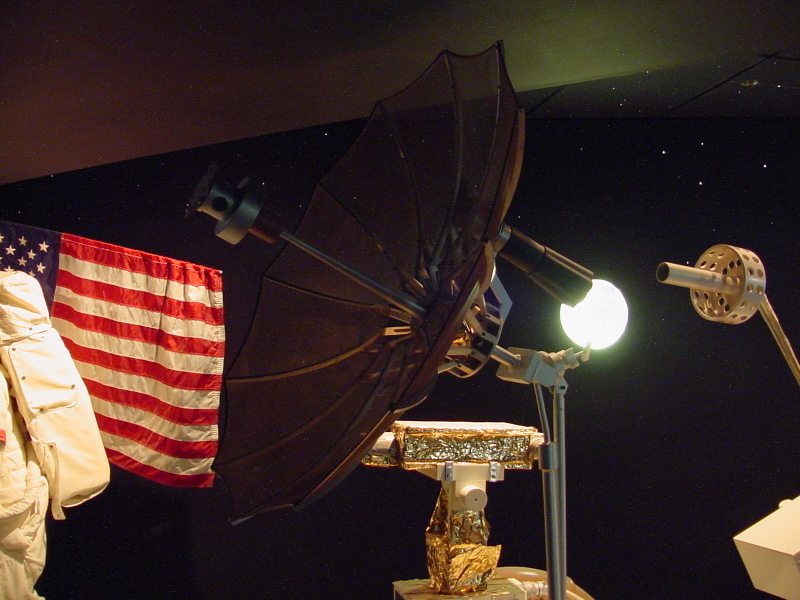

Walk-around of the mockup's high gain antenna.

Picture 2 of 4.

The high gain antenna allowed television, voice, and data telecommunications while the LRV was stationary. This antenna had to be accurately pointed to Earth within a 5° bandwidth via an optical sight in order to to transmit television.
