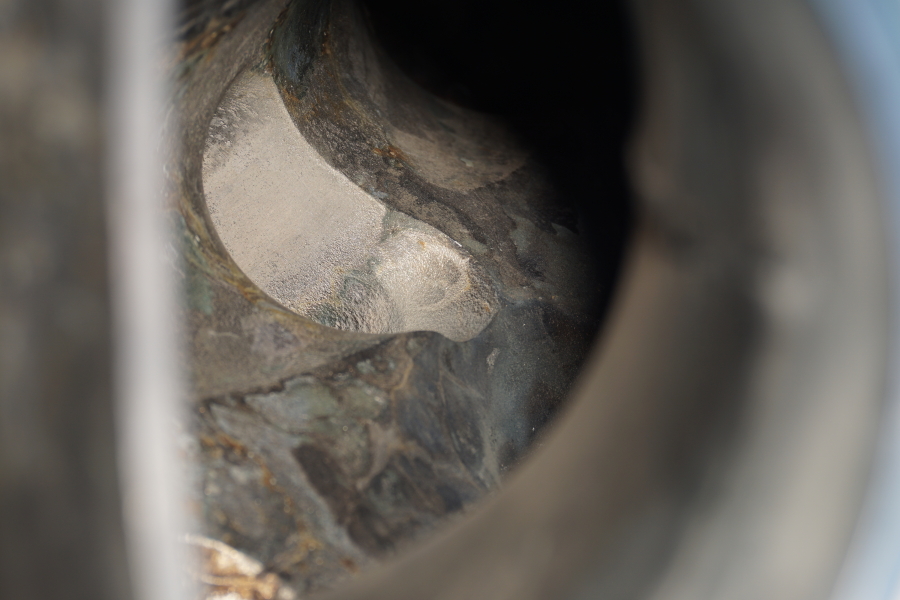

Detail into the right-hand side of the No. 1 LOX dome inlet. Compare to the aft face of Science Museum Oklahoma F-1 engine's LOX dome.

Holes in the LOX dome admit LOX into the area between the LOX dome and the injector, allowing it to flow through to the combustion side of the injector.
