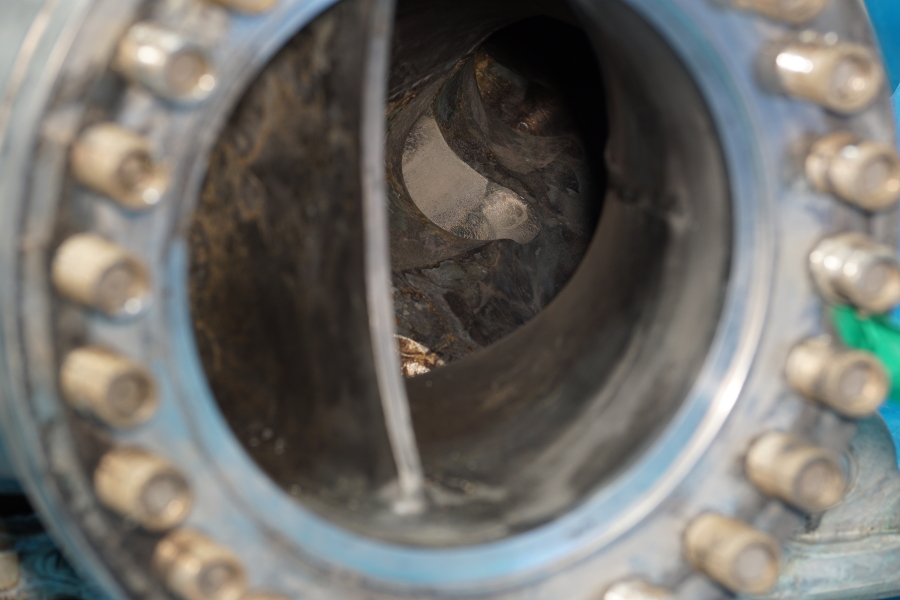

View into the No. 1 LOX dome inlet (located at the 3:00 position in the overall photo). Compare to the aft face of Science Museum Oklahoma F-1 engine's LOX dome.

Picture 2 of 2.

The vertical LOX inlet splitter splits the flow of the incoming LOX, directing it to the left and to the right.
