V-2 Engine Turbopump Gallery

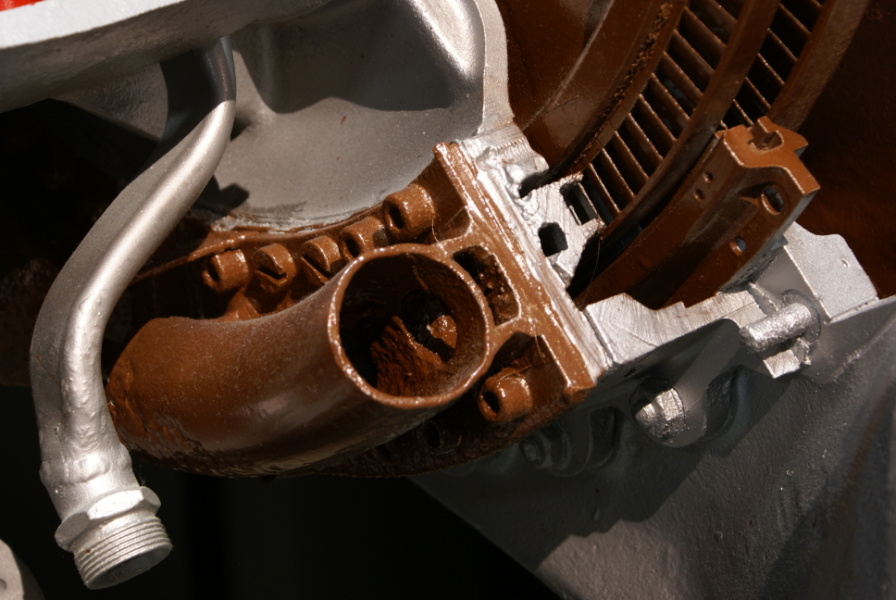

Detail of the steam manifold. Steam from the steam generator feeds to the pipe at left and is distributed through the perforations on the right (turbine) side of the pipe and is directed through the blades of the turbines.

Note the turbine discs at right.

Time picture taken Sun May 17 11:31:52 2009
Location picture taken Missile/Space Gallery
