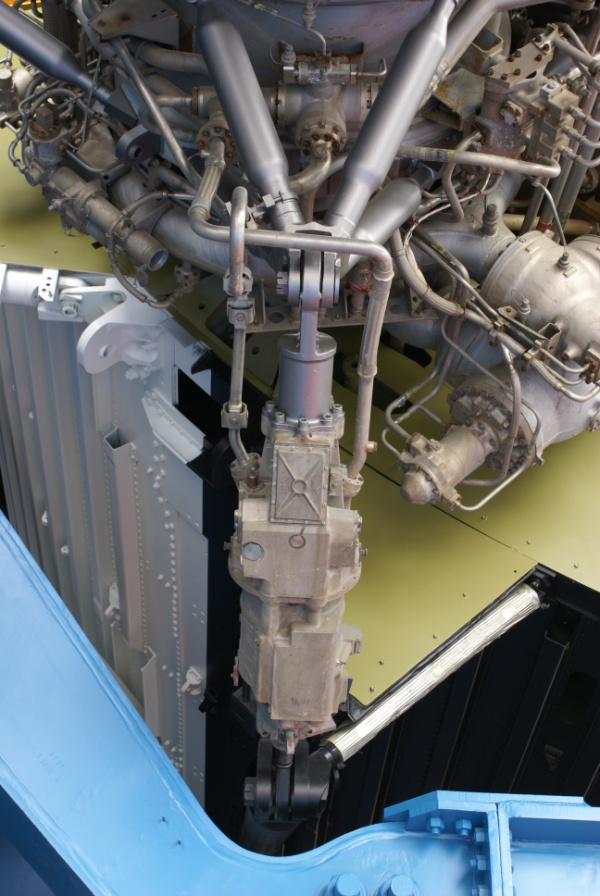

Walk-around of one of the gimbal actuators attached to one of the the lower left engine's gimbal outriggers.
Picture 3 of 5.
The four outer F-1 engines could be gimballed 6° any direction from center, steered by two such gimbal actuators. The engines mated to the stage via a gimbal bearing, which was designed to enable this movement.
| Time picture taken | Fri Jul 10 12:08:30 2009 |
| Location picture taken |
Saturn V Hall Davidson Center for Space Exploration U.S. Space & Rocket Center Huntsville, AL |
