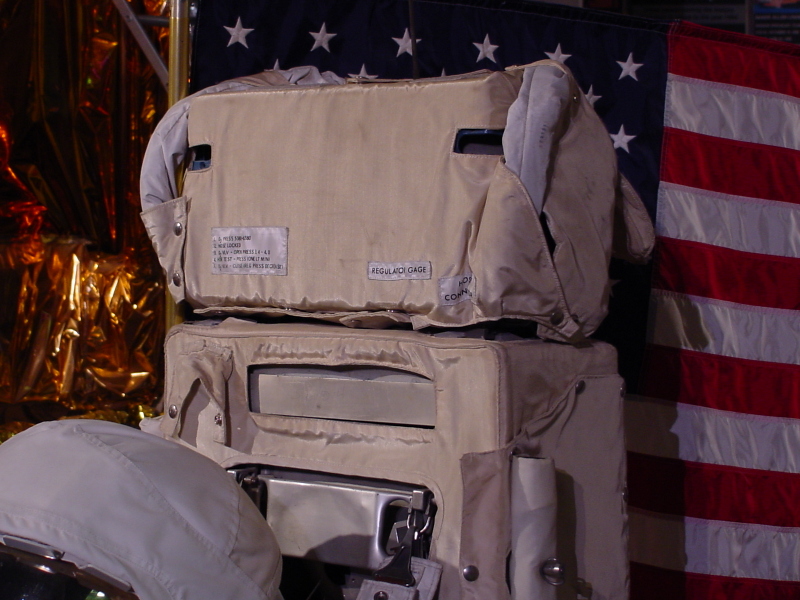

View of the oxygen purge system installed on top of the PLSS.

Although it is at the limit of this camera's resolution, the patch at left appears to read


1. O2 Press 5380-6380
2. Hose locked
3. O2 VLV - Open Press 3.4 - 4.0
4. HTR Test - Press (One LT Min)
5. O2 VLV - Close (Reg Press Decrease)

The patch at center reads "Regulation Gage" (what I assume to refer to a "gauge" is frequently spelled "gage" in period documentation).

The patch at right is folded, but appears to say "Hose Connector".


Apollo A7LB Suit (Space Hall) Portable Life Support System (PLSS) at U.S. Space & Rocket Center
Time picture taken Sat Aug 27 13:59:02 2005
Location picture taken Space Hall
"Old" Museum
U.S. Space & Rocket Center
Huntsville, AL
