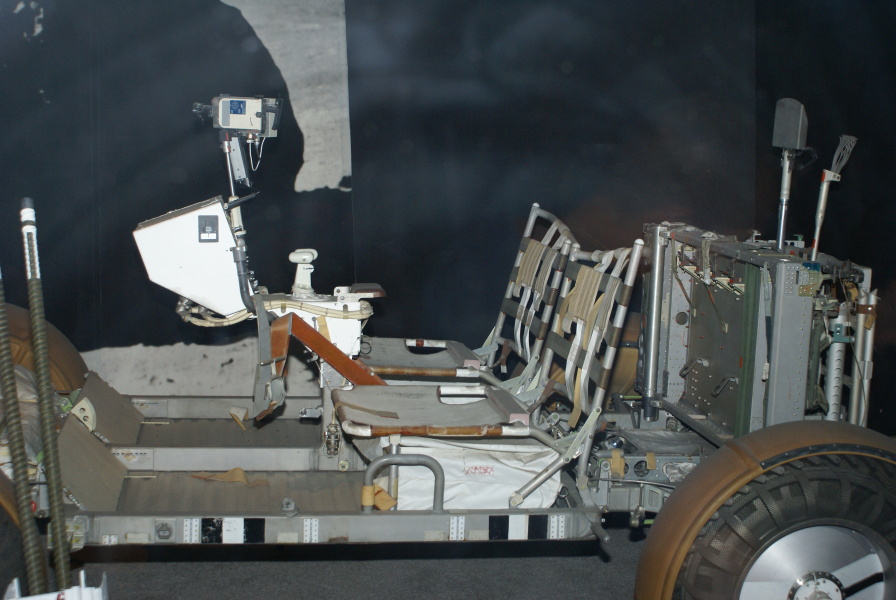

View of the front of the LRV's crew station.

At center are the two seats, which folded down when the LRV was folded and stowed on the Lunar Module. Under the seats are white stowage bags for lunar samples or other items which required stowing.

In front of the seats are the control & display console and the T-shaped hand controller.

Behind the console is the 16 mm data acquisition camera (DAC), more commonly known as a movie camera.

Aft of the seats is the vertical aft pallet assembly, on which several tools are stored. Mounted to the pallet assembly appears to be a lunar hand tool carrier, which held more tools.
