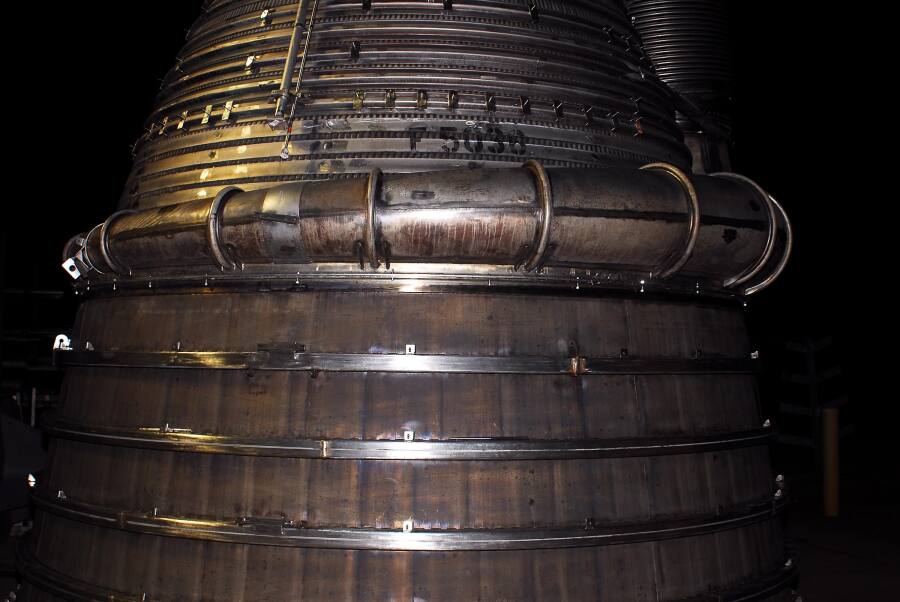

The nozzle extension bolted to the thrust chamber.

There are 240 bolts which attach an F-1 thrust chamber to its nozzle extension, although it appears here that they installed only every eighth bolt for this test.

Note the "F-5036" stencil above the turbine exhaust manifold.
