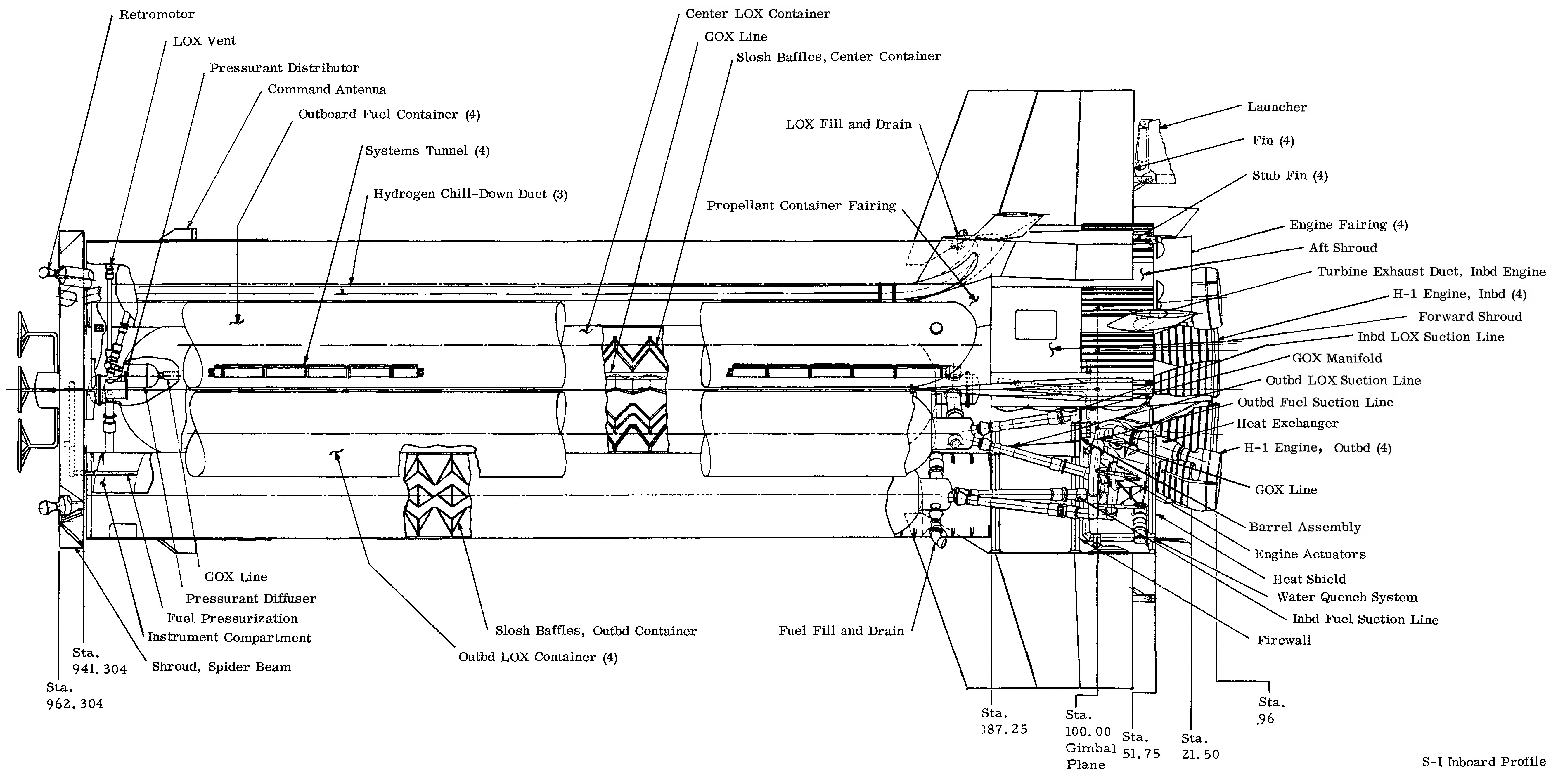

Diagram of the Block II S-I stage.

Click image for a 2666x1342 pixel version of this image in a new window, or click here for a 12003x9498 pixel version of this image in a new window.
Taken from page 11/3-/11-4 of Apollo systems description. Volume 2 - Saturn launch vehicles (p. 338 & 339 in the pdf).
Extraction, reconstruction, and cleanup by heroicrelics.org.
