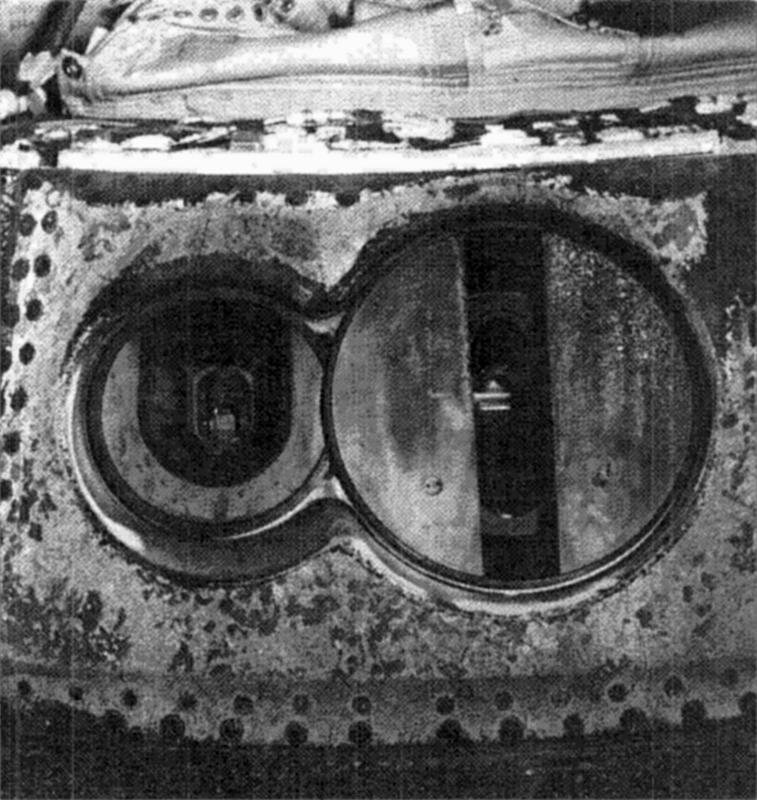

Here's a picture of the Apollo
6 optics during its post-recovery inspection; you can see the ablative panel and optics
which had been removed from the spacecraft prior to display.
The scan quality of the Mission Report is rather poor, and I can't find
S-68-3676 anywhere else on the Internet. If you know where I can obtain a
better picture, please contact me.
Click image for a 1224x1358 pixel version of this image in a new window. (If
your browser shrinks photos to fit the browser window, the large version of
this picture may appear highly pixelated; restoring the image to its original
size will minimize this effect.)
From p. 5.4-29 (p. 159 in the PDF) of Apollo
6 Mission Report
Extraction and cleanup by heroicrelics.
Here's a picture of the optics taken on the recovery ship:
A full-size crop from S68-27041
