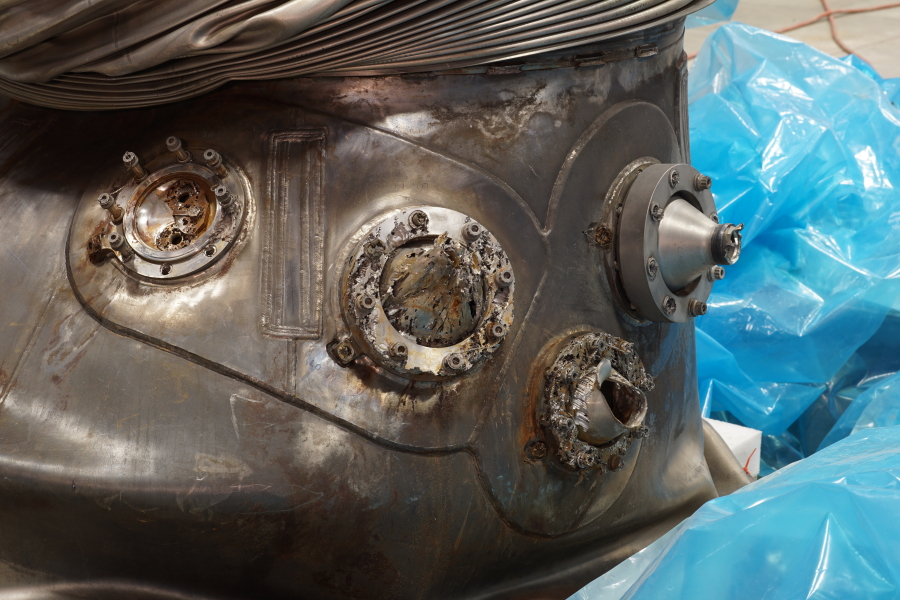

Overall view of the heat exchanger supply and return ports. Parts of the lines leading to and from these ports are still present on three of them.

We're more accustomed to seeing the heat exchanger with the bellows on the bottom (e.g., when an F-1 is displayed vertically), so the ports appear upside down in comparison.

From left to right, the ports are

• Helium supply port
• LOX supply port
• Helium return port
• GOX return port (the liquid oxygen having been converted to gaseous oxygen)
