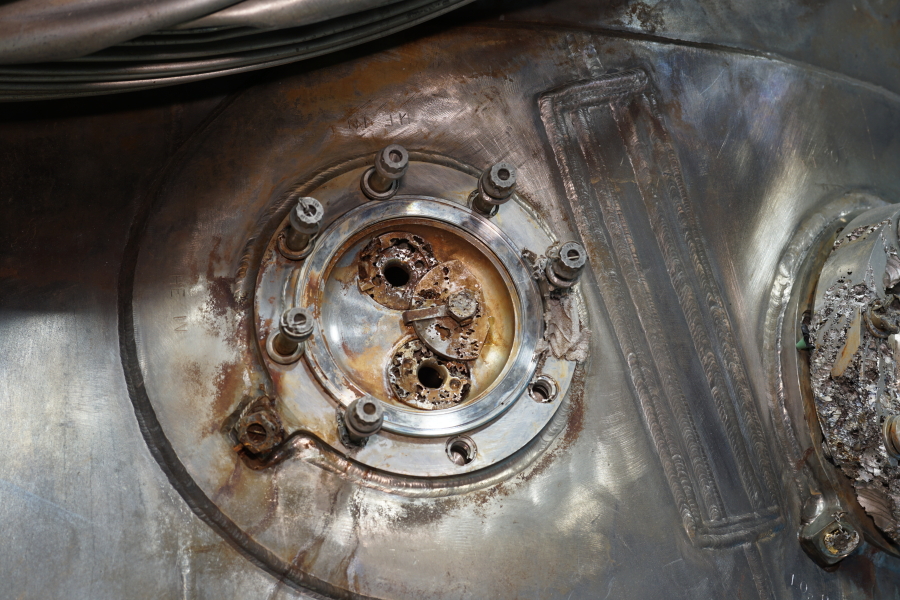

Detail of the heat exchanger's helium supply port.

On some engines I've seen, the orifice plates include the engine's serial number, but not enough of the plates remain to discern a serial number; the middle plate is highly corroded.


Heat exchanger inlet and outlet ports on Jeff Bezos recovered F-1 Apollo 11 rocket engines
Time picture taken Fri Apr 15 10:15:14 2016
Location picture taken Warehouse Floor
Cosmosphere SpaceWorks Facility
Hutchinson, KS
