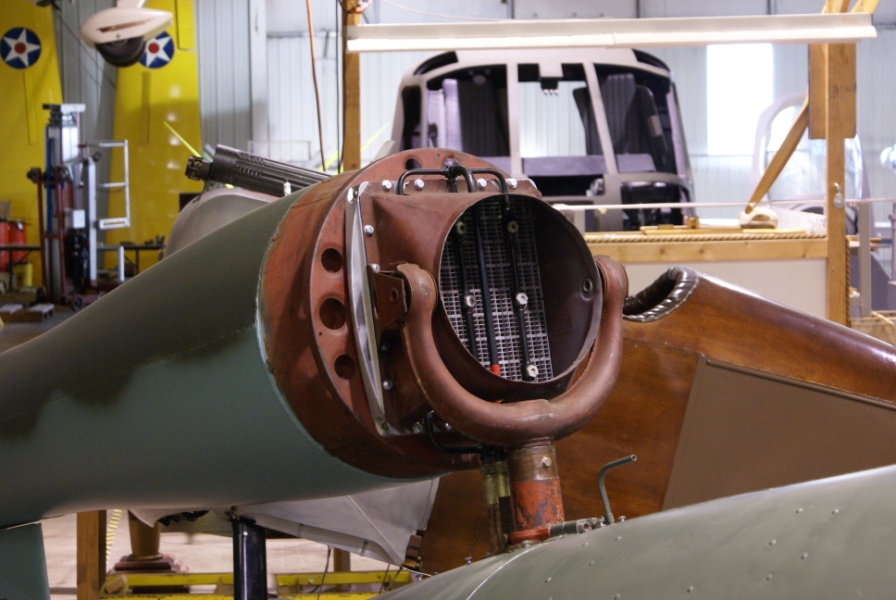

Walk-around of the V-1's Argus As 014 pulse jet engine's inlet. Note that the engine's cowling has not yet been replaced.

Picture 3 of 4.

A detail of the aft end of the shutters appears at dsc59325.jpg.

Note the two lines (presumably propellant lines?) leading from the fuselage to the engine.
