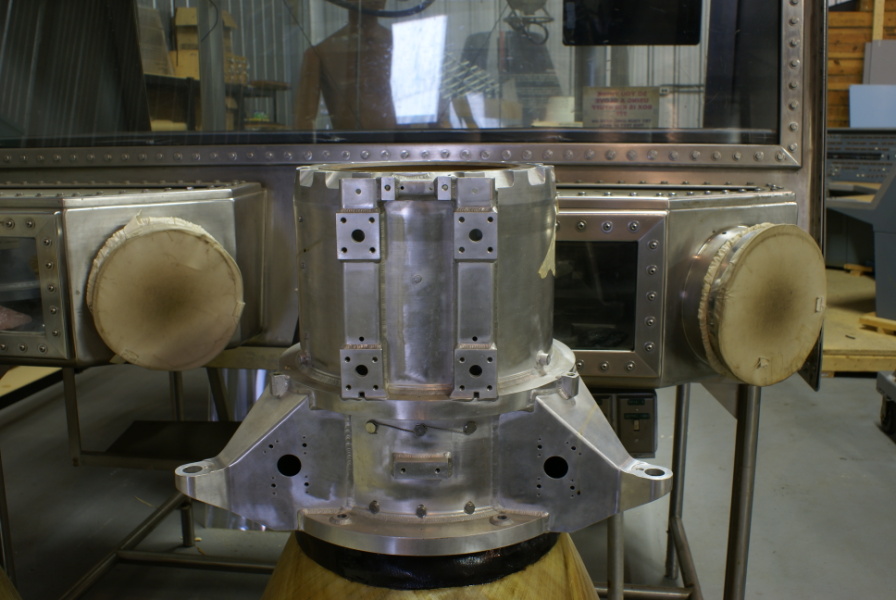

Overall view of the metal casing at the forward end of the combustion chamber.

I believe that the valve package would be mounted here, in the bolt holes on the flat part of the casing.


Time picture taken Thu Oct 29 09:21:16 2009
Location picture taken Hangar 12-1
Air Zoo
Portage, MI
